Panasonic PCC-M104L Series Wire-wound SMD Inductor with a Metal Composite Core, 360 nH ±20% Wire-Wound 24A Idc [ETQP4LR36WFC]; 110-1874
by Panasonic
0₫
Mã kho: 1101874
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 360 nH |
| Maximum DC Current | 24A |
| Length | 11.5mm |
| Depth | 10mm |
| Height | 4mm |

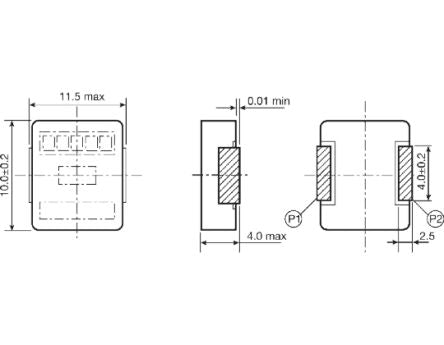

| Dimensions | 11.5 x 10 x 4mm |
| Tolerance | ±20% |
| Maximum DC Resistance | 1.1mΩ |
| Series | PCC-M104L |
| Core Material | Metal Composite |
| Inductor Construction | Wire-Wound |
