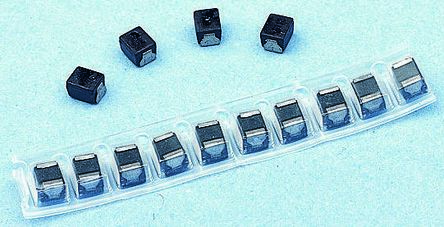

Panasonic ELJFC/SC Series Type 2520 Shielded Wire-wound SMD Inductor with a Ferrite Core, 8.2 μH ±5% Wire-Wound [ELJFC8R2JF]; 729-5050
by Panasonic
0₫
Mã kho: 7295050
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 8.2 μH |
| Maximum DC Current | 105mA |
| Package/Case | 2520 |
| Length | 2.5mm |
| Depth | 2mm |
| Height | 1.6mm |
| Dimensions | 2.5 x 2 x 1.6mm |
| Shielded | Yes |
| Tolerance | ±5% |
| Maximum DC Resistance | 2.2Ω |
| Series | ELJFC/SC |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 40MHz |
| Minimum Quality Factor | 25 |
| Minimum Operating Temperature | -20°C |
| Inductor Construction | Wire-Wound |
| Moulded | Yes |
| Maximum Operating Temperature | +85°C |
