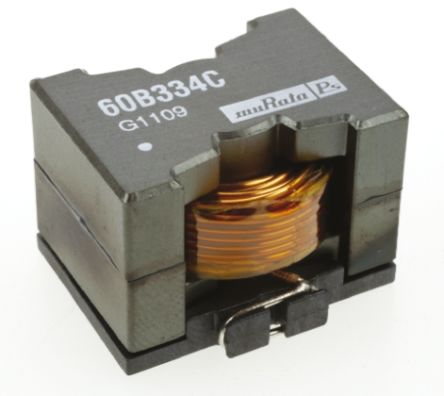

Murata 6000B Series Wire-wound SMD Inductor 330 μH ±15% Wire-Wound 4A Idc [60B334C]; 749-6420
0₫
Mã kho: 7496420
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 330 μH |
| Maximum DC Current | 4A |
| Length | 27mm |
| Depth | 19.5mm |
| Height | 20mm |
| Dimensions | 27 x 19.5 x 20mm |
| Tolerance | ±15% |
| Maximum DC Resistance | 80mΩ |
| Series | 6000B |
| Maximum Self Resonant Frequency | 2.66MHz |
| Minimum Operating Temperature | -40°C |
| Inductor Construction | Wire-Wound |
| Maximum Operating Temperature | +85°C |
