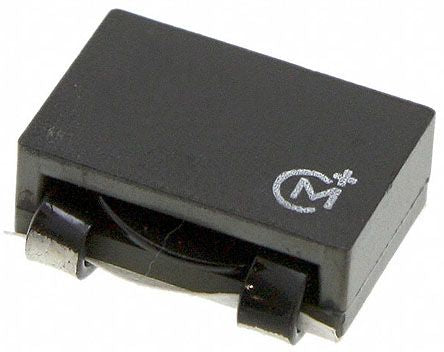

Murata 3700 Series Wire-wound SMD Inductor 1.1 μH ±10% Wire-Wound 14.5A Idc [37112C]; 104-8449
0₫
Mã kho: 1048449
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 1.1 μH |
| Maximum DC Current | 14.5A |
| Length | 14.5mm |
| Depth | 11.5mm |
| Height | 5.8mm |
| Dimensions | 14.5 x 11.5 x 5.8mm |
| Tolerance | ±10% |
| Maximum DC Resistance | 2.2mΩ |
| Series | 3700 |
| Maximum Operating Temperature | +130°C |
| Minimum Operating Temperature | -40°C |
| Inductor Construction | Wire-Wound |
