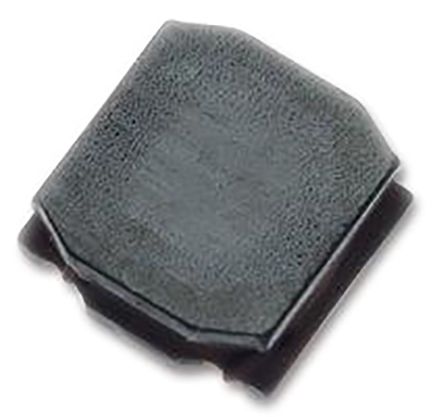

Murata LQH5BPN Series Type 5050 Shielded Wire-wound SMD Inductor with a Ferrite Core, 4.7 μH Wire-Wound [LQH5BPN4R7NT0L]; 167-4940
by Murata
0₫
Mã kho: 1674940
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 4.7 μH |
| Maximum DC Current | 2 (Temperature Rise) A, 3 (Inductance Change) A |
| Package/Case | 5050 |
| Length | 5mm |
| Depth | 5mm |
| Height | 2mm |
| Dimensions | 5 x 5 x 2mm |
| Shielded | Yes |
| Maximum DC Resistance | 58mΩ |
| Series | LQH5BPN |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | Minimum of 40MHz |
| Inductor Construction | Wire-Wound |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
| Moulded | Yes |
