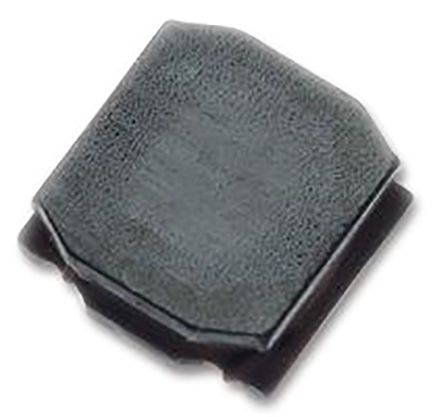

Murata LQH43PN Series Type 4532 Shielded Wire-wound SMD Inductor with a Ferrite Core, 10 μH Wire-Wound [LQH43PN100M26L]; 167-4939
by Murata
0₫
Mã kho: 1674939
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 10 μH |
| Maximum DC Current | 1.05 (Inductance Change) A, 1.17 (Temperature Rise) A |
| Package/Case | 4532 |
| Length | 4.5mm |
| Depth | 3.2mm |
| Height | 2.6mm |
| Dimensions | 4.5 x 3.2 x 2.6mm |
| Shielded | Yes |
| Maximum DC Resistance | 147mΩ |
| Series | LQH43PN |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | Minimum of 20MHz |
| Moulded | Yes |
| Minimum Operating Temperature | -40°C |
| Inductor Construction | Wire-Wound |
| Maximum Operating Temperature | +85°C |
