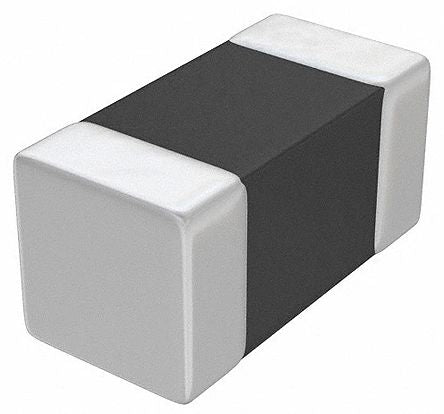

Murata LQG15HN Series Type 1005 Wire-wound SMD Inductor with a Non-Magnetic Ceramic Core, 4.7 nH ±0.3nH Multilayer [LQG15HN4N7S02D]; 124-8159
by Murata
0₫
Mã kho: 1248159
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 4.7 nH |
| Maximum DC Current | 300mA |
| Package/Case | 1005 |
| Length | 1mm |
| Depth | 0.5mm |
| Height | 0.5mm |
| Dimensions | 1 x 0.5 x 0.5mm |
| Tolerance | ±0.3nH |
| Maximum DC Resistance | 230mΩ |
| Series | LQG15HN |
| Core Material | Non-Magnetic Ceramic |
| Maximum Self Resonant Frequency | Minimum of 6000MHz |
| Minimum Quality Factor | 8 |
| Minimum Operating Temperature | -55°C |
| Moulded | Yes |
| Inductor Construction | Multilayer |
| Maximum Operating Temperature | +125°C |
