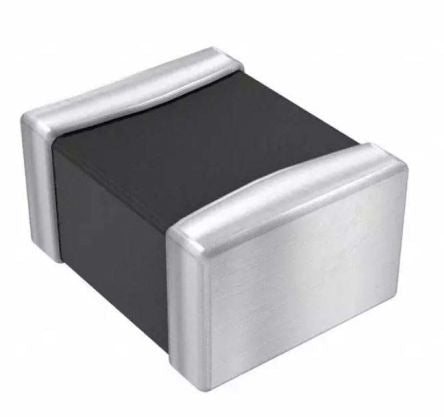

Murata DFE252012C Series Type 2520 Shielded Wire-wound SMD Inductor with a Metal Alloy Core, 1 μH ±20% [1239AS-H-1R0M=P2]; 145-3246
by Murata
0₫
Mã kho: 1453246
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 1 μH |
| Maximum DC Current | 3A |
| Package/Case | 2520 |
| Length | 2.5mm |
| Depth | 2mm |
| Height | 1.2mm |
| Dimensions | 2.5 x 2 x 1.2mm |
| Shielded | Yes |
| Tolerance | ±20% |
| Maximum DC Resistance | 59mΩ |
| Series | DFE252012C |
| Core Material | Metal Alloy |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Inductor Construction | Flat Wire Winding |
