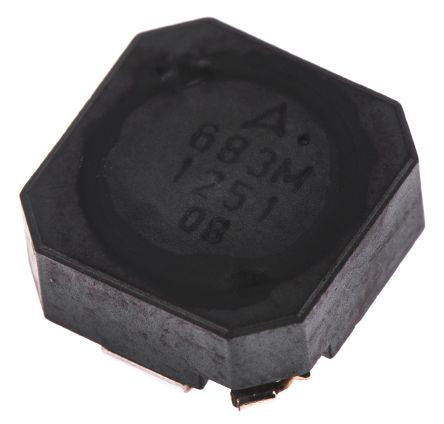

EPCOS B82462-G4 Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 68 μH ±20% Wire-Wound 1.3A Idc [B82464G4683M000]; 167-8197
by EPCOS
0₫
Mã kho: 1678197
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 68 μH |
| Maximum DC Current | 1.3A |
| Length | 10.4mm |
| Depth | 10.4mm |
| Height | 4.8mm |
| Dimensions | 10.4 x 10.4 x 4.8mm |
| Shielded | Yes |
| Tolerance | ±20% |
| Maximum DC Resistance | 130mΩ |
| Series | B82462-G4 |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 8MHz |
| Inductor Construction | Wire-Wound |
