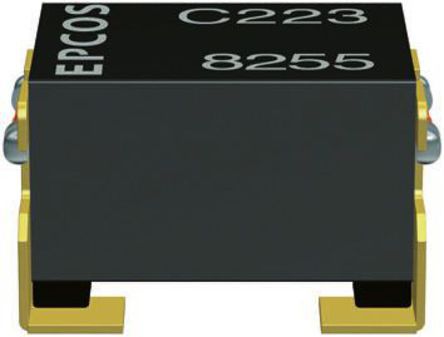

EPCOS SIMID Series Type 2220 Wire-wound SMD Inductor with a Ferrite Core, 2.2 μH ±10% Wire-Wound 1.8A Idc Q:10 [B82442H1222K000]; 496-1230
by EPCOS
0₫
Mã kho: 4961230
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 2.2 μH |
| Maximum DC Current | 1.8A |
| Package/Case | 2220 (5650M) |
| Length | 5.6mm |
| Depth | 5mm |
| Height | 5mm |
| Dimensions | 5.6 x 5 x 5mm |
| Tolerance | ±10% |
| Maximum DC Resistance | 48mΩ |
| Series | SIMID |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 42MHz |
| Inductor Construction | Wire-Wound |
| Minimum Quality Factor | 10 |
| Moulded | Yes |
| Maximum Operating Temperature | +150°C |
