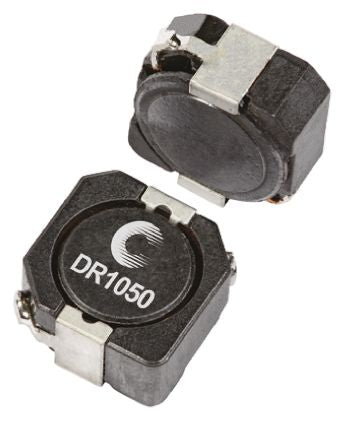

Cooper Bussmann DR1050 Series Type 1050 Shielded Wire-wound SMD Inductor with a Ferrite Core, 1 mH ±30% Wire-Wound [DR1050-102-R]; 770-0839
0₫
Mã kho: 7700839
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 1 mH |
| Maximum DC Current | 480mA |
| Package/Case | 1050 |
| Length | 10.3mm |
| Depth | 10.5mm |
| Height | 5mm |
| Dimensions | 10.3 x 10.5 x 5mm |
| Shielded | Yes |
| Tolerance | ±30% |
| Maximum DC Resistance | 1.95Ω |
| Series | DR1050 |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 1MHz |
| Inductor Construction | Wire-Wound |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
