![Eaton Bussmann Series DR1050-101-R 1699600](http://nguyenxuong.com/cdn/shop/products/R7700836-01_444x399.jpg?v=1594091423)

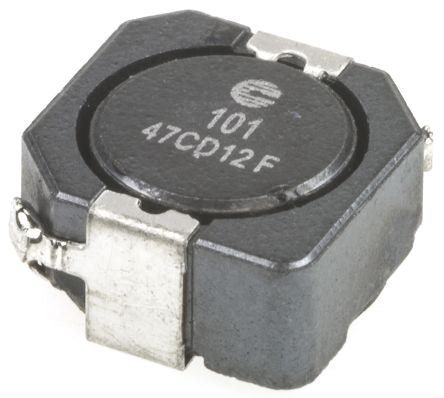

Cooper Bussmann DR1050 Series Type 1050 Shielded Wire-wound SMD Inductor with a Ferrite Core, 100 μH ±30% Wire-Wound [DR1050-101-R]; 169-9600
0₫
Mã kho: 1699600
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Inductance | 100 μH |
Maximum DC Current | 1.45A |
Package/Case | 1050 |
Length | 10.3mm |
Depth | 10.5mm |
Height | 5mm |
Dimensions | 10.3 x 10.5 x 5mm |
Shielded | Yes |
Tolerance | ±30% |
Maximum DC Resistance | 205mΩ |
Series | DR1050 |
Core Material | Ferrite |
Maximum Self Resonant Frequency | 1MHz |
Inductor Construction | Wire-Wound |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +125°C |
