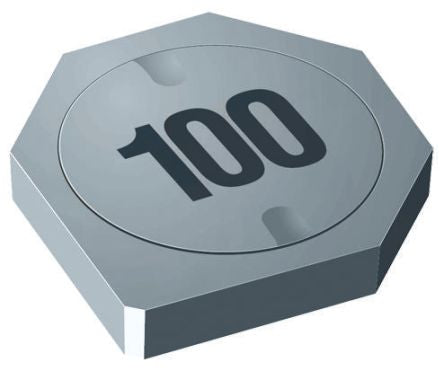

Bourns SRU3028 Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 33 μH ±30% Wire-Wound Q:20 [SRU3028-330Y]; 692-4817
by Bourns
0₫
Mã kho: 6924817
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 33 μH |
| Length | 3.3mm |
| Depth | 3.3mm |
| Height | 2.8mm |
| Dimensions | 3.3 x 3.3 x 2.8mm |
| Shielded | Yes |
| Tolerance | ±30% |
| Maximum DC Resistance | 450mΩ |
| Series | SRU3028 |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 10MHz |
| Minimum Quality Factor | 20 |
| Minimum Operating Temperature | -40°C |
| Inductor Construction | Wire-Wound |
| Maximum Operating Temperature | +125°C |
