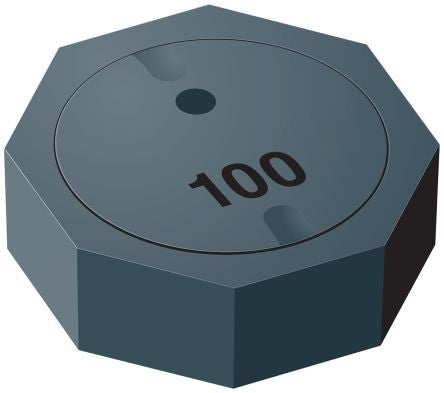

Bourns SRU1038 Series Type 7032 Shielded Wire-wound SMD Inductor with a Ferrite Core, 100 μH Wire-Wound 1.3A Idc Q:24 [SRU1038-101Y]; 172-9742
by Bourns
0₫
Mã kho: 1729742
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 100 μH |
| Maximum DC Current | 1.3A |
| Package/Case | 7032 |
| Length | 10mm |
| Depth | 10mm |
| Height | 3.8mm |
| Dimensions | 10 x 10 x 3.8mm |
| Shielded | Yes |
| Maximum DC Resistance | 220mΩ |
| Series | SRU1038 |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 6MHz |
| Maximum Operating Temperature | +125°C |
| Inductor Construction | Wire-Wound |
| Minimum Operating Temperature | -40°C |
| Minimum Quality Factor | 24 |
| Moulded | Yes |
