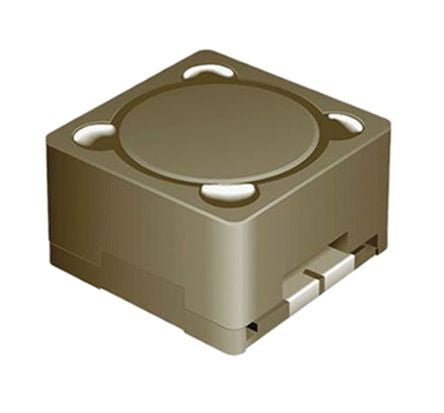

Bourns SRR1208 Series Type E6 Shielded Wire-wound SMD Inductor with a Ferrite DR & RI Core, 3.3 mH Wire-Wound 350mA Idc [SRR1208-332KL]; 874-9753
by Bourns
0₫
Mã kho: 8749753
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 3.3 mH |
| Maximum DC Current | 350mA |
| Package/Case | E6 |
| Length | 12.7mm |
| Depth | 12.7mm |
| Height | 8.5mm |
| Dimensions | 12.7 x 12.7 x 8.5mm |
| Shielded | Yes |
| Maximum DC Resistance | 6.4Ω |
| Series | SRR1208 |
| Core Material | Ferrite DR & RI |
| Maximum Self Resonant Frequency | 500kHz |
| Minimum Quality Factor | 20 |
| Minimum Operating Temperature | -40°C |
| Inductor Construction | Wire-Wound |
| Maximum Operating Temperature | +125°C |
