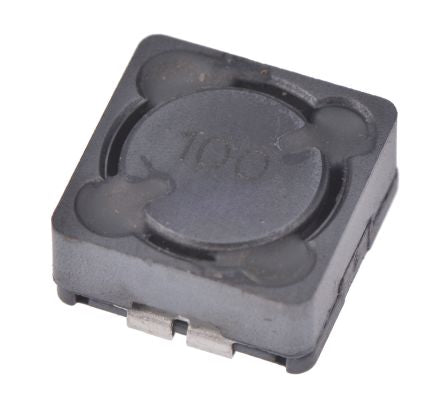

Bourns SRR1206 Series Type E12 Shielded Wire-wound SMD Inductor with a Ferrite DR & RI Core, 10 μH Wire-Wound 5.7A Idc [SRR1206-100ML]; 874-9857
by Bourns
0₫
Mã kho: 8749857
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 10 μH |
| Maximum DC Current | 5.7A |
| Package/Case | E12 |
| Length | 12.7mm |
| Depth | 12.7mm |
| Height | 6.5mm |
| Dimensions | 12.7 x 12.7 x 6.5mm |
| Shielded | Yes |
| Maximum DC Resistance | 35mΩ |
| Series | SRR1206 |
| Core Material | Ferrite DR & RI |
| Maximum Self Resonant Frequency | 18MHz |
| Minimum Quality Factor | 18 |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
| Inductor Construction | Wire-Wound |
