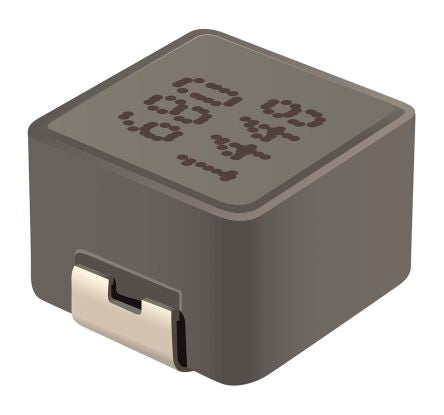

Bourns SRP7050TA Series Shielded Wire-wound SMD Inductor with a Carbonyl Powder Core, 47 μH Wire-Wound 1.9A Idc Q:15 [SRP7050TA-470M]; 905-4955
by Bourns
0₫
Mã kho: 9054955
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 47 μH |
| Maximum DC Current | 1.9A |
| Length | 7.3mm |
| Automotive Standard | AEC-Q200 |
| Depth | 4.8mm |
| Height | 6.6mm |
| Dimensions | 7.3 x 4.8 x 6.6mm |
| Shielded | Yes |
| Maximum DC Resistance | 330mΩ |
| Series | SRP7050TA |
| Core Material | Carbonyl Powder |
| Maximum Self Resonant Frequency | 8MHz |
| Minimum Quality Factor | 15 |
| Inductor Construction | Wire-Wound |
| Maximum Operating Temperature | +150°C |
| Minimum Operating Temperature | -40°C |
| Moulded | Yes |
