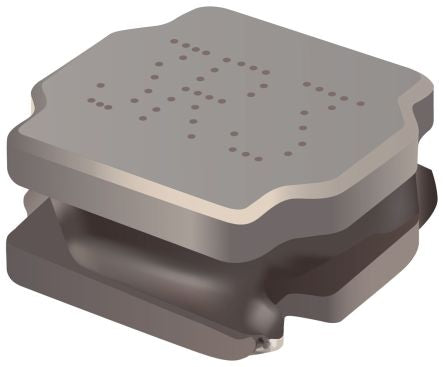

Bourns SRN8040TA Series Wire-wound SMD Inductor with a Ferrite Core, 82 μH ±20% Semi-Shielded 1.4A Idc Q:12 [SRN8040TA-820M]; 135-5796
by Bourns
0₫
Mã kho: 1355796
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 82 μH |
| Maximum DC Current | 1.4A |
| Length | 8mm |
| Depth | 8mm |
| Automotive Standard | AEC-Q200 |
| Height | 3.7mm |
| Dimensions | 8 x 8 x 3.7mm |
| Tolerance | ±20% |
| Maximum DC Resistance | 230mΩ |
| Series | SRN8040TA |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 8.5MHz |
| Minimum Operating Temperature | -55°C |
| Inductor Construction | Semi-Shielded |
| Minimum Quality Factor | 12 |
| Maximum Operating Temperature | +125°C |
