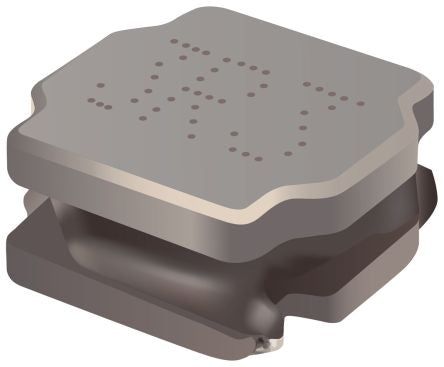

Bourns SRN8040TA Series Wire-wound SMD Inductor with a Ferrite Core, 3.3 μH ±30% Semi-Shielded 6.6A Idc Q:15 [SRN8040TA-3R3Y]; 135-5776
by Bourns
0₫
Mã kho: 1355776
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 3.3 μH |
| Maximum DC Current | 6.6A |
| Length | 8mm |
| Depth | 8mm |
| Automotive Standard | AEC-Q200 |
| Height | 4.2mm |
| Dimensions | 8 x 8 x 4.2mm |
| Tolerance | ±30% |
| Maximum DC Resistance | 15mΩ |
| Series | SRN8040TA |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 48MHz |
| Maximum Operating Temperature | +125°C |
| Minimum Quality Factor | 15 |
| Inductor Construction | Semi-Shielded |
| Minimum Operating Temperature | -55°C |
