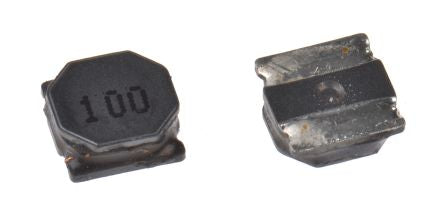

Bourns SRN5020 Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 10 μH ±20% Wire-Wound 1.45A rms Idc [SRN5020-100M]; 772-9770
by Bourns
0₫
Mã kho: 7729770
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 10 μH |
| Maximum DC Current | 1.45A rms |
| Length | 5mm |
| Depth | 5mm |
| Height | 2mm |
| Dimensions | 5 x 5 x 2mm |
| Shielded | Yes |
| Tolerance | ±20% |
| Maximum DC Resistance | 144mΩ |
| Series | SRN5020 |
| Core Material | Ferrite |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +120°C |
| Inductor Construction | Wire-Wound |
