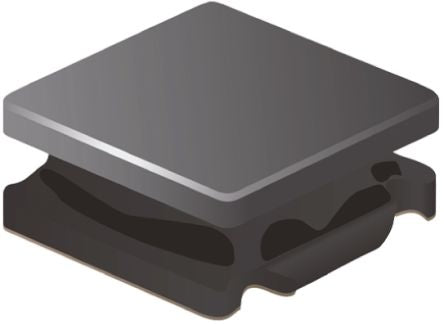

Bourns SRN4018 Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 15 μH ±20% Wire-Wound 1A rms Idc [SRN4018-150M]; 172-7061
by Bourns
0₫
Mã kho: 1727061
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 15 μH |
| Maximum DC Current | 1A rms |
| Length | 4mm |
| Depth | 4mm |
| Height | 1.8mm |
| Dimensions | 4 x 4 x 1.8mm |
| Shielded | Yes |
| Tolerance | ±20% |
| Series | SRN4018 |
| Core Material | Ferrite |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +120°C |
| Inductor Construction | Wire-Wound |
