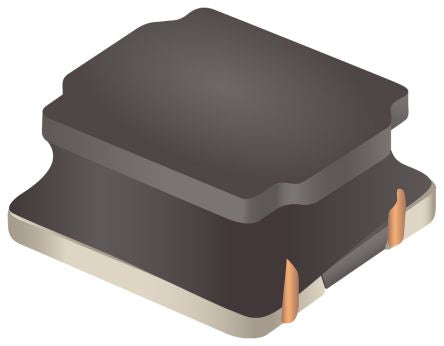

Bourns SRN3015TA Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 3.3 μH ±20% Semi-Shielded 1.4A Idc Q:12 [SRN3015TA-3R3M]; 135-5909
by Bourns
0₫
Mã kho: 1355909
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 3.3 μH |
| Maximum DC Current | 1.4A |
| Length | 3mm |
| Automotive Standard | AEC-Q200 |
| Depth | 3mm |
| Height | 1.5mm |
| Dimensions | 3 x 3 x 1.5mm |
| Shielded | Yes |
| Tolerance | ±20% |
| Maximum DC Resistance | 80mΩ |
| Series | SRN3015TA |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 49MHz |
| Inductor Construction | Semi-Shielded |
| Maximum Operating Temperature | +125°C |
| Minimum Quality Factor | 12 |
| Minimum Operating Temperature | -40°C |
