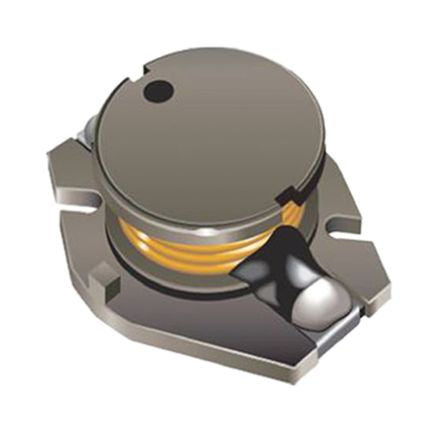

Bourns SDR1806 Series Type E6 Wire-wound SMD Inductor with a Ferrite DR Core, 470 μH Wire-Wound 1.5A Idc Q:15 [SDR1806-471KL]; 172-8549
by Bourns
0₫
Mã kho: 1728549
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 470 μH |
| Maximum DC Current | 1.5A |
| Package/Case | E6 |
| Length | 18.3mm |
| Depth | 14mm |
| Height | 6.6mm |
| Dimensions | 18.3 x 14 x 6.6mm |
| Series | SDR1806 |
| Core Material | Ferrite DR |
| Maximum Self Resonant Frequency | 3MHz |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
| Minimum Quality Factor | 15 |
| Inductor Construction | Wire-Wound |
