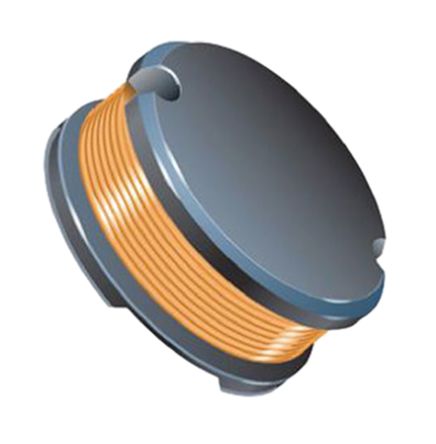

Bourns SDR1307 Series Type E12 Wire-wound SMD Inductor with a Ferrite DR Core, 150 μH Wire-Wound 2.6A Idc Q:20 [SDR1307-151KL]; 172-8516
by Bourns
0₫
Mã kho: 1728516
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 150 μH |
| Maximum DC Current | 2.6A |
| Package/Case | E12 |
| Height | 7mm |
| Diameter | 13mm |
| Dimensions | 13 (Dia.) x 7mm |
| Series | SDR1307 |
| Core Material | Ferrite DR |
| Maximum Self Resonant Frequency | 4.5MHz |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
| Minimum Quality Factor | 20 |
| Inductor Construction | Wire-Wound |
