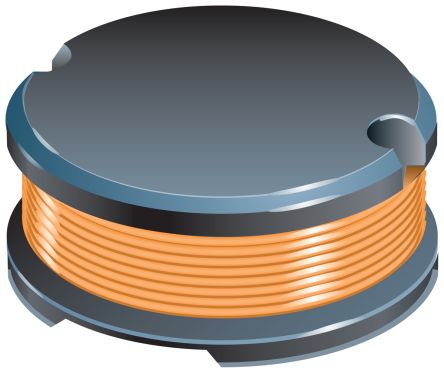

Bourns SDR1006 Series Type 1006 Wire-wound SMD Inductor with a Ferrite Core, 150 μH Wire-Wound 780mA Idc Q:15 [SDR1006-151KL]; 122-9204
by Bourns
0₫
Mã kho: 1229204
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 150 μH |
| Maximum DC Current | 780mA |
| Package/Case | 1006 |
| Height | 5.8mm |
| Diameter | 9.8mm |
| Dimensions | 9.8 (Dia.) x 5.8mm |
| Maximum DC Resistance | 470mΩ |
| Series | SDR1006 |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | Minimum of 4.5MHz |
| Maximum Operating Temperature | +125°C |
| Minimum Quality Factor | 15 |
| Inductor Construction | Wire-Wound |
| Moulded | Yes |
| Minimum Operating Temperature | -40°C |
