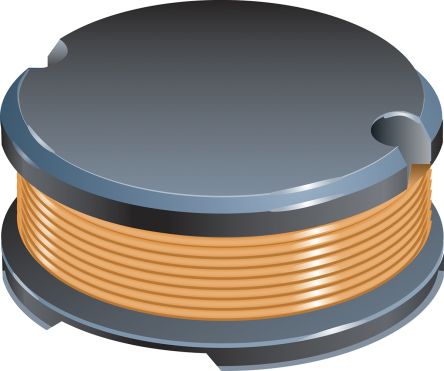

Bourns SDR0805 Series Type SMD Wire-wound SMD Inductor with a Ferrite DR Core, 82 μH ±10% Ferrite Core 780mA Idc Q:12 [SDR0805-820KL]; 181-4296
by Bourns
0₫
Mã kho: 1814296
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 82 μH |
| Maximum DC Current | 780mA |
| Package/Case | SMD |
| Height | 5.3mm |
| Diameter | 7.8mm |
| Dimensions | 7.8 Dia. x 5.3mm |
| Tolerance | ±10% |
| Maximum DC Resistance | 370mΩ |
| Series | SDR0805 |
| Core Material | Ferrite DR |
| Maximum Self Resonant Frequency | 7MHz |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
| Minimum Quality Factor | 12 |
| Inductor Construction | Ferrite Core |
