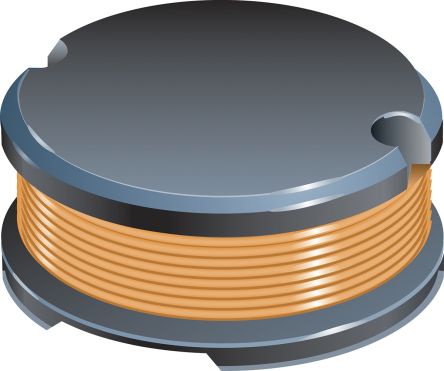

Bourns SDR0805 Series Type SMD Wire-wound SMD Inductor with a Ferrite DR Core, 47 μH ±10% Ferrite Core 1A Idc Q:15 [SDR0805-470KL]; 172-7111
by Bourns
0₫
Mã kho: 1727111
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Inductance | 47 μH |
Maximum DC Current | 1A |
Package/Case | SMD |
Height | 5.3mm |
Diameter | 7.8mm |
Dimensions | 7.8 Dia. x 5.3mm |
Tolerance | ±10% |
Maximum DC Resistance | 200mΩ |
Series | SDR0805 |
Core Material | Ferrite DR |
Maximum Self Resonant Frequency | 9MHz |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +125°C |
Inductor Construction | Ferrite Core |
Minimum Quality Factor | 15 |
