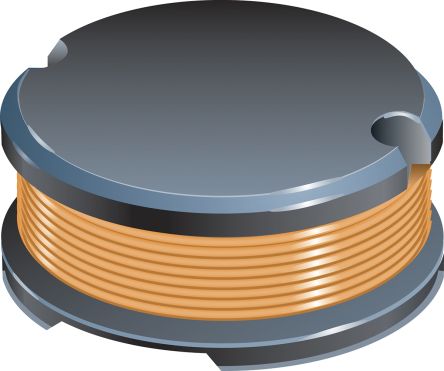

Bourns SDR0503 Series Type SMD Wire-wound SMD Inductor with a Ferrite DR Core, 10 mH ±5% Ferrite Core 20mA Idc Q:30 [SDR0503-103JL]; 181-6306
by Bourns
0₫
Mã kho: 1816306
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 10 mH |
| Maximum DC Current | 20mA |
| Package/Case | SMD |
| Height | 3mm |
| Diameter | 5mm |
| Dimensions | 5 Dia. x 3mm |
| Tolerance | ±5% |
| Maximum DC Resistance | 110Ω |
| Series | SDR0503 |
| Core Material | Ferrite DR |
| Maximum Self Resonant Frequency | 1MHz |
| Minimum Operating Temperature | -40°C |
| Inductor Construction | Ferrite Core |
| Maximum Operating Temperature | +125°C |
| Minimum Quality Factor | 30 |
