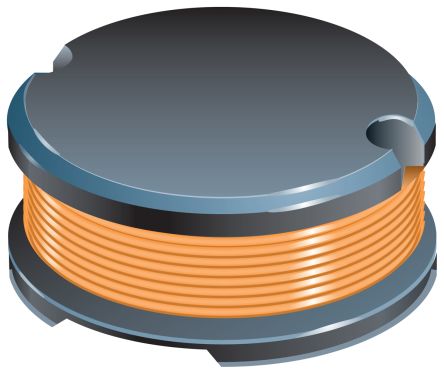

Bourns SDR0403 Series Type 0403 Wire-wound SMD Inductor with a Ferrite Core, 470 μH Wire-Wound 130mA Idc Q:50 [SDR0403-471KL]; 122-9183
by Bourns
0₫
Mã kho: 1229183
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 470 μH |
| Maximum DC Current | 130mA |
| Package/Case | 403 |
| Height | 3.2mm |
| Diameter | 4.5mm |
| Dimensions | 4.5 (Dia.) x 3.2mm |
| Maximum DC Resistance | 7Ω |
| Series | SDR0403 |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | Minimum of 3MHz |
| Minimum Quality Factor | 50 |
| Maximum Operating Temperature | +125°C |
| Inductor Construction | Wire-Wound |
| Minimum Operating Temperature | -40°C |
| Moulded | Yes |
