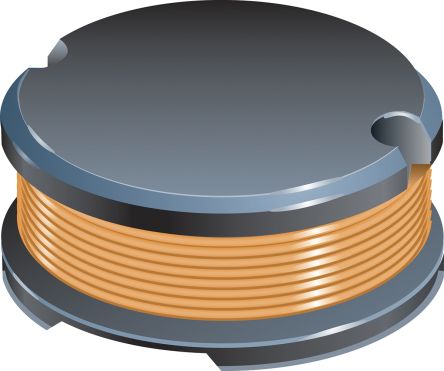

Bourns SDR0403 Series Type SMD Wire-wound SMD Inductor with a Ferrite DR Core, 120 μH ±10% Ferrite Core 320mA Idc Q:50 [SDR0403-121KL]; 181-8229
by Bourns
0₫
Mã kho: 1818229
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 120 μH |
| Maximum DC Current | 320mA |
| Package/Case | SMD |
| Height | 3.2mm |
| Diameter | 4.5mm |
| Dimensions | 4.5 Dia. x 3.2mm |
| Tolerance | ±10% |
| Maximum DC Resistance | 2.2Ω |
| Series | SDR0403 |
| Core Material | Ferrite DR |
| Maximum Self Resonant Frequency | 8MHz |
| Minimum Operating Temperature | -40°C |
| Minimum Quality Factor | 50 |
| Maximum Operating Temperature | +125°C |
| Inductor Construction | Ferrite Core |
