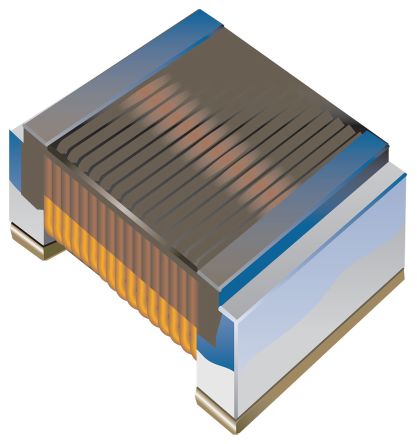

Bourns CW201212 Series Type 201212 Wire-wound SMD Inductor with a Ceramic Core, 10 nH Wire-Wound 600mA Idc Q:60 [CW201212-10NJ]; 122-9190
by Bourns
0₫
Mã kho: 1229190
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 10 nH |
| Maximum DC Current | 600mA |
| Package/Case | 201212 |
| Length | 2.1mm |
| Depth | 1.5mm |
| Height | 1.5mm |
| Dimensions | 2.1 X 1.5 X 1.3mm |
| Maximum DC Resistance | 80mΩ |
| Series | CW201212 |
| Core Material | Ceramic |
| Maximum Self Resonant Frequency | Minimum of 4800MHz |
| Minimum Operating Temperature | -40°C |
| Inductor Construction | Wire-Wound |
| Maximum Operating Temperature | +125°C |
| Minimum Quality Factor | 60 |
| Moulded | Yes |
