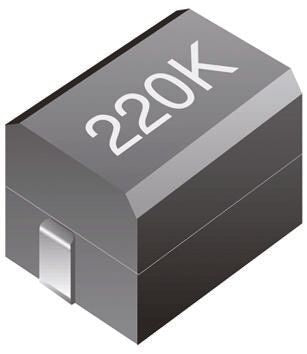

Bourns CM32 Series Type 1210 Wire-wound SMD Inductor with a Ferrite Core, 2.2 μH ±10% Wire-Wound 190mA Idc Q:30 [CM322522-2R2KL]; 172-7035
by Bourns
0₫
Mã kho: 1727035
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 2.2 μH |
| Maximum DC Current | 190mA |
| Package/Case | 1210 (3225M) |
| Length | 3.2mm |
| Depth | 2.5mm |
| Height | 2.2mm |
| Dimensions | 3.2 x 2.5 x 2.2mm |
| Tolerance | ±10% |
| Series | CM32 |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 80MHz |
| Minimum Operating Temperature | -40°C |
| Minimum Quality Factor | 30 |
| Inductor Construction | Wire-Wound |
| Maximum Operating Temperature | +100°C |
