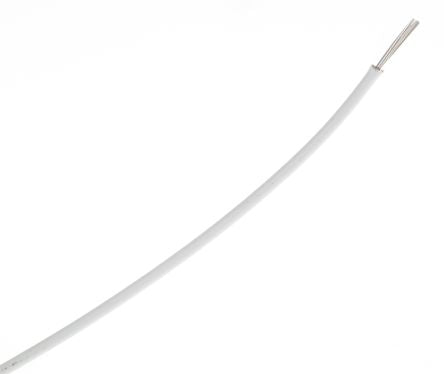

TE Connectivity High Temperature Wire 1.3 mm² CSA, White 100m Reel [M22759/32-16-9]; 113-5782
0₫
Mã kho: 1135782
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Cross Sectional Area | 1.3 mm² |
| Sheath Colour | White |
| American Wire Gauge | 16 AWG |
| Insulation Material | ETFE |
| Core Strands | 19 / 29 AWG |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +150°C |
| Operating Temperature Range | -65 → +150 °C |
| Length | 100m |
| Outer Diameter | 1.73mm |
| Voltage Rating | 600 V ac |
| Size of Strands | 29 AWG |
| Conductor Material | Copper |
| Cable Shape | Single Core |
| Number of Strands | 19 |
