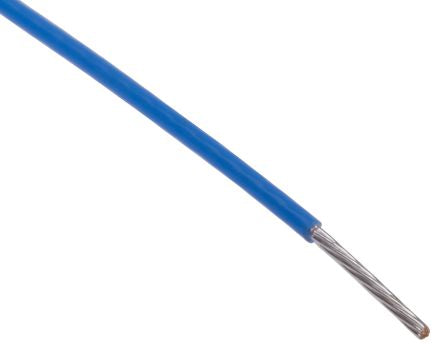

RS PRO PTFE Equipment Wire 0.08 mm² CSA, Blue 100m Reel; 841-7144
by RS PRO
0₫
Mã kho: 8417144
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Cross Sectional Area | 0.08 mm² |
| Sheath Colour | Blue |
| Wire Style | BS3G210 |
| American Wire Gauge | 28 AWG |
| Insulation Material | PTFE |
| Resistant To | Fuels, Gasoline, Hydraulic Fluid, Lubricants, Oils |
| Core Strands | 7/0.12 mm |
| Minimum Operating Temperature | -75°C |
| Maximum Operating Temperature | 200°C |
| Operating Temperature Range | -75 → +200 °C |
| Length | 100m |
| Outer Diameter | 0.71mm |
| Voltage Rating | 300 V |
| Standards Met | BS 3G 210:1996 |
| Number of Strands | 7 |
| Conductor Material | Silver Plated Copper |
| Size of Strands | 0.12 mm |
| Insulation Wall Thickness | 0.15mm |
