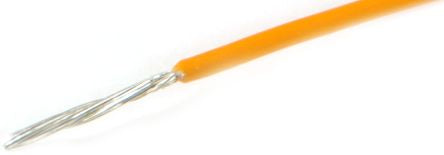

Alpha Wire High Temperature Wire 0.02 mm² CSA, Orange 305m Reel, ThermoThin Series [2934 OR001]; 138-1741
by Alpha Wire
0₫
Mã kho: 1381741
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Cross Sectional Area | 0.02 mm² |
| Sheath Colour | Orange |
| Wire Style | AWM/STYLE 11540 |
| American Wire Gauge | 34 AWG |
| Insulation Material | Fluoropolymer |
| Resistant To | Chemicals, Sunlight, Water |
| Core Strands | Solid |
| Minimum Operating Temperature | -150°C |
| Maximum Operating Temperature | +300°C |
| Operating Temperature Range | -150 → +300 °C |
| Length | 305m |
| Outer Diameter | 0.36mm |
| Voltage Rating | 600 V ac |
| Insulation Wall Thickness | 0.1mm |
| Type | Hook-Up Wire |
| Standards Met | EU Low Voltage Directive 2014/35/EC, UL AWM 11540 |
| Conductor Material | Nickel Plated Copper |
| Series | ThermoThin |
