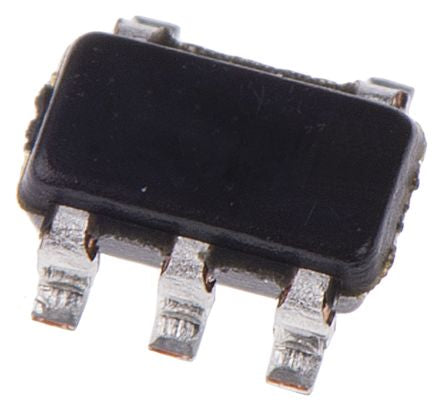

Texas Instruments TLV431BQDBVT, Adjustable Shunt Voltage Reference 1.24 - 6V, ±0.5 % 5-Pin, SOT-23 [TLV431BQDBVT]; 732-1228
0₫
Mã kho: 7321228
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 1.24 - 6V |
| Package Type | SOT-23 |
| Reference Type | Adjustable |
| Initial Accuracy | ±0.5 % |
| Mounting Type | Surface Mount |
| Topology | Shunt |
| Maximum Output Current | 15mA |
| Minimum Output Voltage | 1.24 V |
| Maximum Output Voltage | 6 V |
| Pin Count | 5 |
| Dimensions | 3.05 x 1.75 x 1.3mm |
| Maximum Operating Temperature | +125 °C |
| Height | 1.3mm |
| Minimum Operating Temperature | -40 °C |
| Length | 3.05mm |
| Width | 1.75mm |
