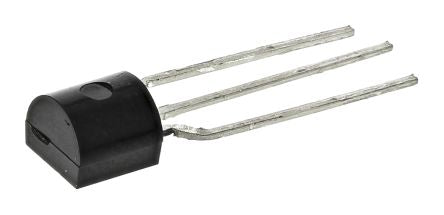

Texas Instruments TL431AILPM, Adjustable Shunt Voltage Reference 2.5 - 36V, ±1.0 % 3-Pin, TO-92 [TL431AILPM]; 661-9818
0₫
Mã kho: 6619818
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 2.5 - 36V |
| Package Type | TO-92 |
| Reference Type | Adjustable |
| Initial Accuracy | ±1.0 % |
| Mounting Type | Through Hole |
| Topology | Shunt |
| Maximum Output Current | 100mA |
| Maximum Input Voltage | 37 V |
| Minimum Output Voltage | 2.5 V |
| Maximum Output Voltage | 36 V |
| Pin Count | 3 |
| Dimensions | 4.83 x 3.43 x 3.68mm |
| Minimum Operating Temperature | -40 °C |
| Height | 3.68mm |
| Maximum Operating Temperature | +85 °C |
| Width | 3.43mm |
| Length | 4.83mm |
