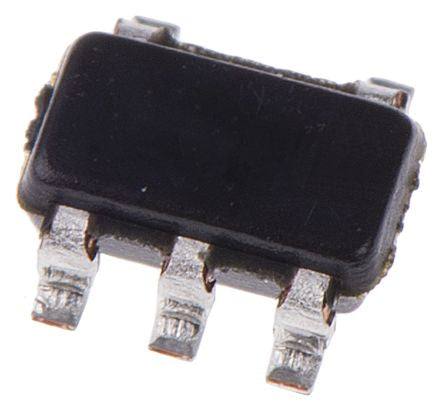

Texas Instruments TL431ACDBVR, Adjustable Shunt Voltage Reference 2.5 - 36V, ±1.0 % 5-Pin, SOT-23 [TL431ACDBVR]; 661-9499
0₫
Mã kho: 6619499
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 2.5 - 36V |
| Package Type | SOT-23 |
| Reference Type | Adjustable |
| Initial Accuracy | ±1.0 % |
| Mounting Type | Surface Mount |
| Topology | Shunt |
| Maximum Output Current | 100mA |
| Maximum Input Voltage | 37 V |
| Minimum Output Voltage | 2.5 V |
| Maximum Output Voltage | 36 V |
| Pin Count | 5 |
| Dimensions | 2.9 x 1.6 x 1.15mm |
| Height | 1.15mm |
| Length | 2.9mm |
| Maximum Operating Temperature | +70 °C |
| Width | 1.6mm |
| Minimum Operating Temperature | 0 °C |
