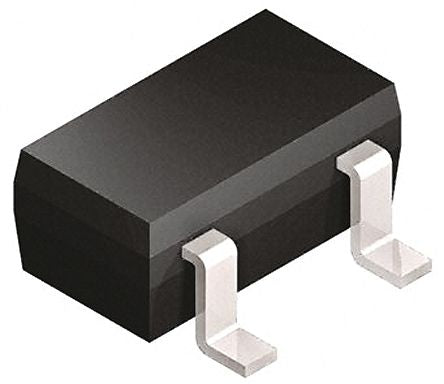

Texas Instruments REF3333AIDBZT, Fixed Series Voltage Reference 3.3V, ±0.15 % 3-Pin, SOT-23 [REF3333AIDBZT]; 121-9399
0₫
Mã kho: 1219399
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 3.3V |
| Package Type | SOT-23 |
| Reference Type | Fixed |
| Initial Accuracy | ±0.15 % |
| Mounting Type | Surface Mount |
| Topology | Series |
| Maximum Output Current | 30mA |
| Maximum Input Voltage | 5.5 V |
| Pin Count | 3 |
| Line Regulation | 30 ppm/V |
| Load Regulation | 20 ppm/V |
| Dimensions | 3.04 x 1.4 x 1.02mm |
| Width | 1.4mm |
| Length | 3.04mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Height | 1.02mm |
