Texas Instruments REF3225AIDBVT, Fixed Series Voltage Reference 2.5V, ±0.2 % 6-Pin, SOT-23 [REF3225AIDBVT]; 121-8964
0₫
Mã kho: 1218964
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Nominal Voltage | 2.5V |

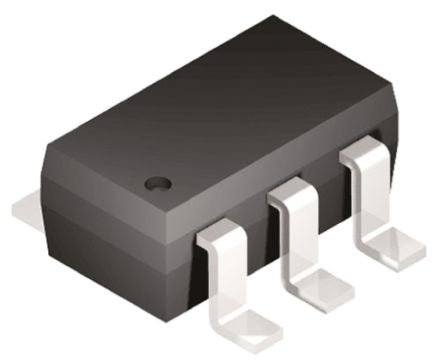

Package Type | SOT-23 |
Reference Type | Fixed |
Initial Accuracy | ±0.2 % |
Mounting Type | Surface Mount |
Topology | Series |
Maximum Output Current | 10mA |
Maximum Input Voltage | 7.5 V |
Minimum Output Voltage | 2.495 V |
Maximum Output Voltage | 2.505 V |
Pin Count | 6 |
Line Regulation | 65 ppm/V |
Load Regulation | 60 μV/mA |
Dimensions | 2.9 x 1.6 x 1.15mm |
Minimum Operating Temperature | -40 °C |
Width | 1.6mm |
Maximum Operating Temperature | +125 °C |
Height | 1.15mm |
Length | 2.9mm |
