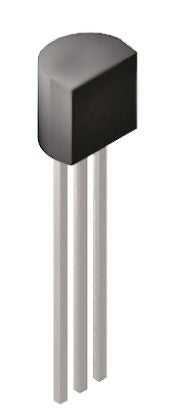

![Texas Instruments LT1009ILP 6619802](http://nguyenxuong.com/cdn/shop/products/TO92-03_65d3a620-8581-4dfd-a62e-552d4b723aa0_170x420.jpg?v=1594205150)
Texas Instruments LT1009ILP, Fixed Shunt Voltage Reference 2.5V, ±0.2 % 3-Pin, TO-92 [LT1009ILP]; 661-9802
0₫
Mã kho: 6619802
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Nominal Voltage | 2.5V |
Package Type | TO-92 |
Reference Type | Fixed |
Initial Accuracy | ±0.2 % |
Mounting Type | Through Hole |
Topology | Shunt |
Maximum Output Current | 10mA |
Minimum Output Voltage | 2.475 V |
Maximum Output Voltage | 2.525 V |
Pin Count | 3 |
Load Regulation | 6 mV |
Dimensions | 4.83 x 3.43 x 3.68mm |
Minimum Operating Temperature | -40 °C |
Width | 3.43mm |
Maximum Operating Temperature | +85 °C |
Height | 3.68mm |
Length | 4.83mm |
