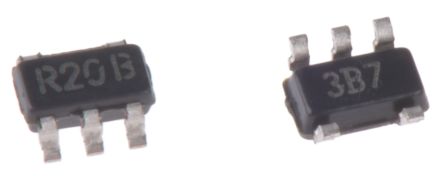

Texas Instruments LM4121IM5-ADJ/NOPB, Adjustable Series Voltage Reference 1.216 - 12V, ±0.5 % 5-Pin, SOT-23 [LM4121IM5-ADJ/NOPB]; 162-6253
0₫
Mã kho: 1626253
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 1.216 - 12V |
| Package Type | SOT-23 |
| Reference Type | Adjustable |
| Initial Accuracy | ±0.5 % |
| Mounting Type | Surface Mount |
| Topology | Series |
| Maximum Output Current | 5mA |
| Minimum Output Voltage | 1.21 V |
| Maximum Output Voltage | 1.222 V |
| Pin Count | 5 |
| Line Regulation | 0.012 %/V |
| Load Regulation | 0.12 %/mA |
| Dimensions | 2.92 x 1.6 x 1.02mm |
| Height | 1.02mm |
| Maximum Operating Temperature | +85 °C |
| Length | 2.92mm |
| Width | 1.6mm |
| Minimum Operating Temperature | -40 °C |
