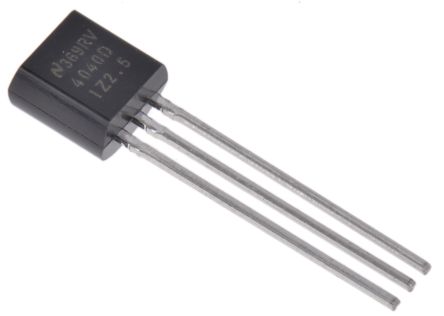

Texas Instruments LM4040DIZ-2.5/NOPB, Fixed Shunt Voltage Reference 2.5V, ±1.0 % 3-Pin, TO-92 [LM4040DIZ-2.5/NOPB]; 121-8775
0₫
Mã kho: 1218775
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 2.5V |
| Package Type | TO-92 |
| Reference Type | Fixed |
| Initial Accuracy | ±1.0 % |
| Mounting Type | Through Hole |
| Topology | Shunt |
| Maximum Output Current | 15mA |
| Pin Count | 3 |
| Load Regulation | 8 mV |
| Dimensions | 5.2 x 4.19 x 5.2mm |
| Height | 5.2mm |
| Length | 5.2mm |
| Maximum Operating Temperature | +85 °C |
| Width | 4.19mm |
| Minimum Operating Temperature | -40 °C |
