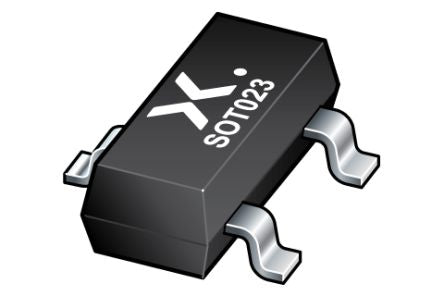

Nexperia TL431BFDT,215, Adjustable Shunt Precision Voltage Reference 2.495V, 0.5% 3-Pin, SOT-23 [TL431BFDT,215]; 170-5436
by Nexperia
0₫
Mã kho: 1705436
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Nominal Voltage | 2.495V |
Package Type | SOT-23 |
Reference Type | Adjustable, Precision |
Initial Accuracy | 0.005 |
Mounting Type | Surface Mount |
Topology | Shunt |
Maximum Output Current | 100mA |
Maximum Input Voltage | 37 V |
Minimum Output Voltage | 2483 mV |
Maximum Output Voltage | 2507 mV |
Pin Count | 3 |
Line Regulation | -2.7 mV/V |
Dimensions | 3 x 1.4 x 1mm |
Length | 3mm |
Automotive Standard | AEC-Q100 |
Maximum Operating Temperature | +125 °C |
Height | 1mm |
Minimum Operating Temperature | -40 °C |
Width | 1.4mm |
