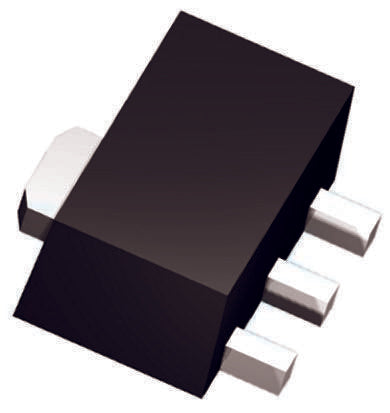

New Japan Radio NJM431UA-TE1, Adjustable Shunt Voltage Reference 2.5 - 36V, ±2.2 % 3-Pin, SOT-89 [NJM431UA-TE1]; 740-5575
0₫
Mã kho: 7405575
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 2.5 - 36V |
| Package Type | SOT-89 |
| Reference Type | Adjustable |
| Initial Accuracy | ±2.2 % |
| Mounting Type | Surface Mount |
| Topology | Shunt |
| Maximum Output Current | 100mA |
| Minimum Output Voltage | 2.5 V |
| Maximum Output Voltage | 36 V |
| Pin Count | 3 |
| Load Regulation | 0.001 |
| Dimensions | 4.5 x 2.5 x 1.5mm |
| Length | 4.5mm |
| Minimum Operating Temperature | -40 °C |
| Width | 2.5mm |
| Maximum Operating Temperature | +85 °C |
| Height | 1.5mm |
