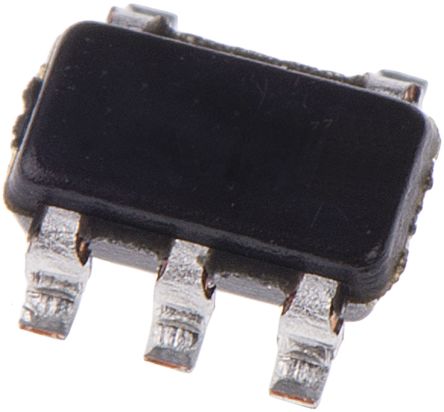

![New Japan Radio NJM2820F-TE1 7139262](http://nguyenxuong.com/cdn/shop/products/R7139262-01_444x412.jpg?v=1594081565)
New Japan Radio NJM2820F-TE1, Adjustable Shunt Voltage Reference 1.25 - 13V, ±0.7 % 5-Pin, SOT-23 [NJM2820F-TE1]; 713-9262
0₫
Mã kho: 7139262
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Nominal Voltage | 1.25 - 13V |
Package Type | SOT-23 |
Reference Type | Adjustable |
Initial Accuracy | ±0.7 % |
Mounting Type | Surface Mount |
Topology | Shunt |
Maximum Output Current | 30mA |
Maximum Input Voltage | 14 V |
Minimum Output Voltage | 1.25 V |
Maximum Output Voltage | 13 V |
Pin Count | 5 |
Dimensions | 2.9 x 1.6 x 1.1mm |
Maximum Operating Temperature | +85 °C |
Height | 1.1mm |
Length | 2.9mm |
Minimum Operating Temperature | -40 °C |
Width | 1.6mm |
