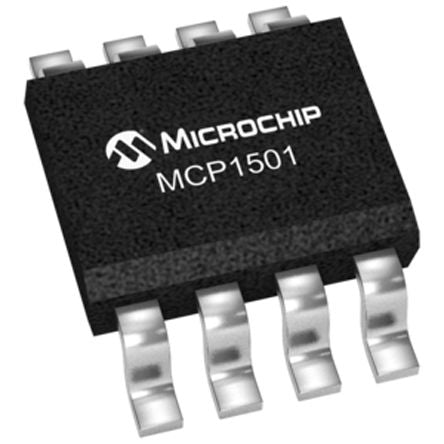

Microchip MCP1501-40E/SN, Fixed Series Voltage Reference 4.096V, ±0.08 % 8-Pin, SOIC [MCP1501-40E/SN]; 165-4706
by Microchip
0₫
Mã kho: 1654706
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Nominal Voltage | 4.096V |
Package Type | SOIC |
Reference Type | Fixed |
Initial Accuracy | ±0.08 % |
Mounting Type | Surface Mount |
Topology | Series |
Maximum Output Current | 30mA |
Maximum Input Voltage | 5.5 V |
Minimum Output Voltage | 4.092 V |
Maximum Output Voltage | 4.099 V |
Pin Count | 8 |
Line Regulation | 50 ppm/V |
Load Regulation | 40 (Sink) ppm/mA, 70 (Source) ppm/mA |
Dimensions | 4.9 x 3.9 x 1.5mm |
Height | 1.5mm |
Maximum Operating Temperature | +125 °C |
Length | 4.9mm |
Width | 3.9mm |
Minimum Operating Temperature | -40 °C |
