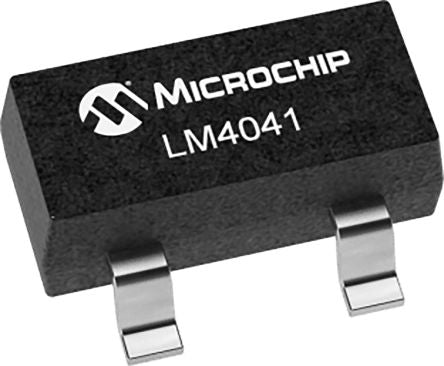

Microchip Technology LM4041CYM3-ADJ-TR, Adjustable Shunt Precision Voltage Reference 1.23V, ±0.5% 3-Pin, SOT-23 [LM4041CYM3-ADJ-TR]; 177-3005
by Microchip
0₫
Mã kho: 1773005
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 1.23V |
| Package Type | SOT-23 |
| Reference Type | Adjustable, Precision |
| Initial Accuracy | ±0.5% |
| Mounting Type | Surface Mount |
| Topology | Shunt |
| Maximum Output Current | 12mA |
| Maximum Input Voltage | 15 V |
| Maximum Output Voltage | 10 V |
| Pin Count | 3 |
| Dimensions | 0.9 x 2.92 x 1.3mm |
| Height | 0.9mm |
| Width | 1.3mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Length | 2.92mm |
