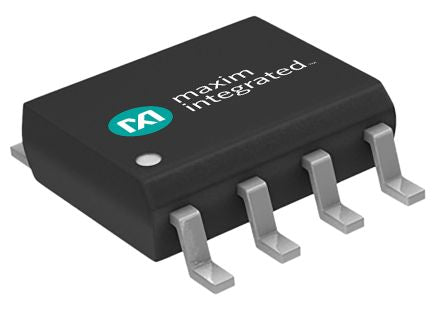

V-REF PRECISION 2.5V 15MA [MAX6325CSA+]; 190-0021
0₫
Mã kho: 1900021
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 2.5V |
| Package Type | SO |
| Reference Type | Precision |
| Initial Accuracy | ±0.02% |
| Mounting Type | Surface Mount |
| Maximum Input Voltage | 36 V |
| Minimum Output Voltage | 2.499 V |
| Maximum Output Voltage | 2.501 V |
| Pin Count | 8 |
| Line Regulation | 45 ppm/V |
| Load Regulation | 15 (Sourcing) ppm/mA, 30 (Sink) ppm/mA |
| Dimensions | 5 x 4 x 1.5mm |
| Minimum Operating Temperature | 0 °C |
| Width | 4mm |
| Length | 5mm |
| Maximum Operating Temperature | +70 °C |
| Height | 1.5mm |
