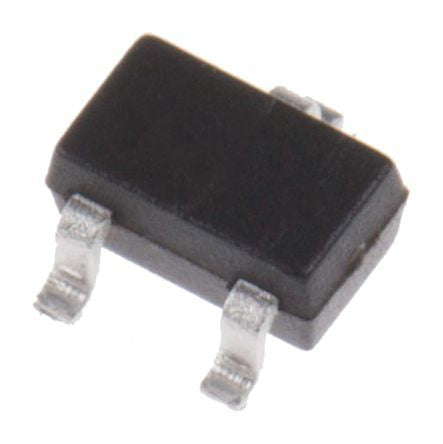

0.1% 25ppm SC70 Shunt Voltage Ref [MAX6138AEXR25+T]; 190-7821
0₫
Mã kho: 1907821
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 2.5V |
| Package Type | SC-70 |
| Reference Type | Precision |
| Initial Accuracy | 0.001 |
| Mounting Type | Surface Mount |
| Topology | Shunt |
| Minimum Output Voltage | 2.49 V |
| Maximum Output Voltage | 2.502 V |
| Pin Count | 3 |
| Dimensions | 2.2 x 1.35 x 1mm |
| Length | 2.2mm |
| Height | 1mm |
| Minimum Operating Temperature | -40 °C |
| Width | 1.35mm |
| Maximum Operating Temperature | +85 °C |
